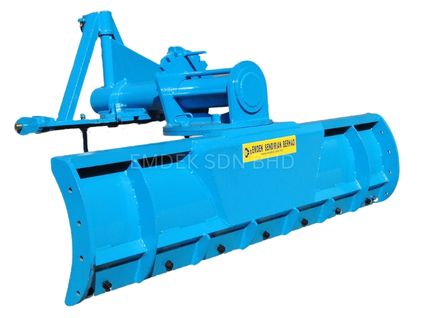

EMDEK TRACTOR MOUNTED REAR LINKAGE GRADER

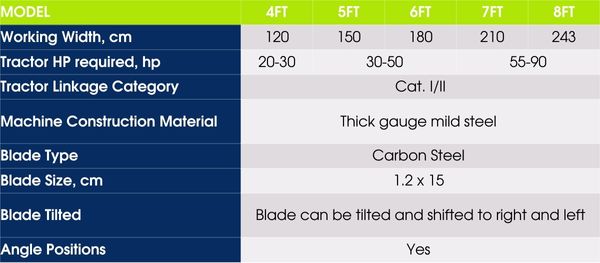

Heavy duty tractor mounted rear linkage grader best for road and landfill applications. May be used in reverse. Available in 4 models of 5ft, 6ft, 7ft and 8ft cutting widths to suit different tractor horse powers from 30-90HP. Constructed of thick gauge Mild Steel with replaceable grader blade bolted on by heavy duty plough bolts. The blade can be tilted, shifted to right and right, and angled to suit various land conditions and ground levels. Suitable for tractors with Category 2 3-point linkage.

Shifting to Left and right hand side cut, angling and tilting and reversing blade direction can all be easily done through use of wedges.
