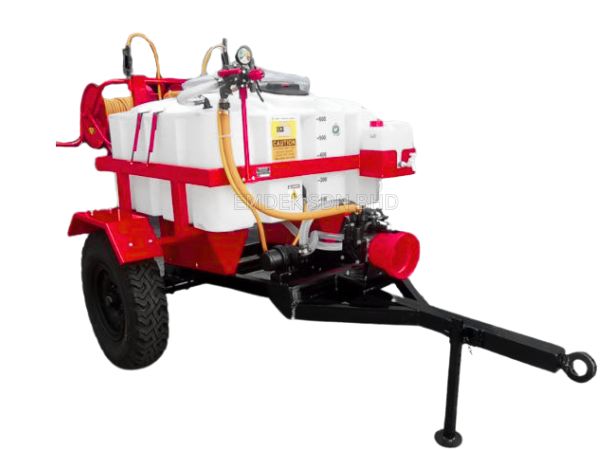

EMDEK TRAILED SPRAYER (PTO DRIVEN)

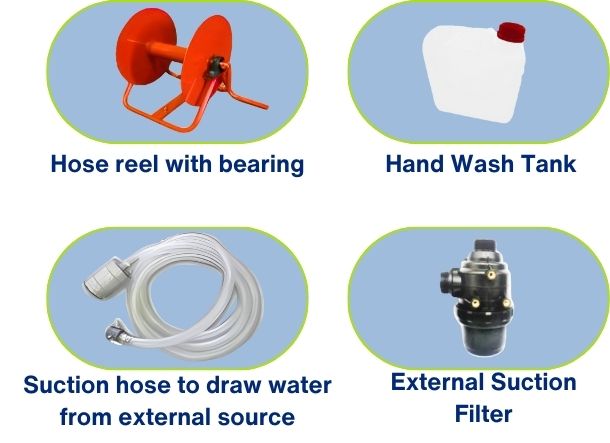

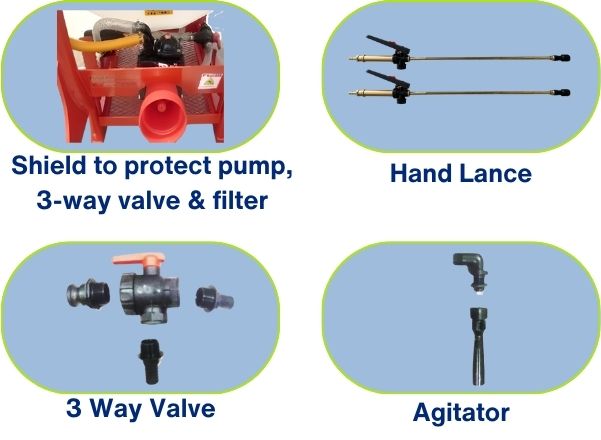

Emdek Trailed Sprayer with 600 / 800 / 100 Litres capacity fiberglass tank fitted on a mild steel frame / chasis with single axle and tyres. AR Diaphragm pump with spray pressure control. Drawbar front and rear fitted with seats for 2 operators. Twin reels each with 50 m hose and hand lance. PTO drive shaft included. 20 Litres hand wash tank standard. Rectangular shape tank has overall reduced height to lower center of gravity. Suitable for tractors 25 HP and above. Tank has 3 - way valve for external filling, suction hose and filtration system. Pressure gauge is standard.

Pump options:
  • AR 30 diaphragm pump and VDR 50 control system
  • AR 70 diaphragm pump and VDR 20 control system
